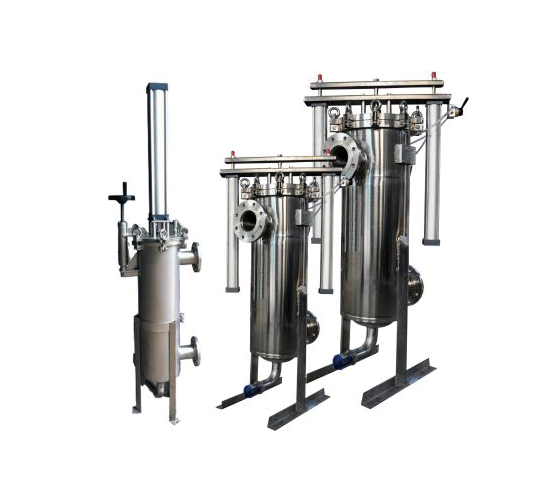

Automatic Cylinder Scraper Self Cleaning Filter

PrimeFiltra Automatic Cylinder Scraper Filter is improved mechanical type self-cleaning filter, which has reach the world leading level. Unlike the backwash filter, scraper filter is not only suitable for water filtration, but also for the filtration of viscous materials such as solvent, acid, polymers, coating, etc.. With the filtration accuracy range of 30-1500μm, it can handle liquids with a viscosity of up to 800,000 CBR. Scraper filter is widely used in water treatment, petrochemical, metallurgy, electric power, fine chemical, paint, ink, paper, food and beverage, metal processing and other industries.

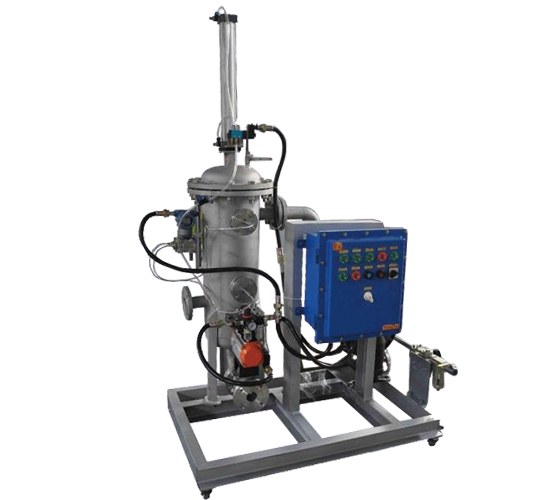

Automatic cylinder scraper filter is operate automatically with high filtration accuracy, stable & reliable performance, which is good to replace the traditional manual filter in many industries.

Automatic Cylinder Scraper Self Cleaning Filter

Product Description

PrimeFiltra Automatic Cylinder Scraper Filter is improved mechanical type self-cleaning filter, which has reach the world leading level. Unlike the backwash filter, scraper filter is not only suitable for water filtration, but also for the filtration of viscous materials such as solvent, acid, polymers, coating, etc.. With the filtration accuracy range of 30-1500μm, it can handle liquids with a viscosity of up to 800,000 CBR. Scraper filter is widely used in water treatment, petrochemical, metallurgy, electric power, fine chemical, paint, ink, paper, food and beverage, metal processing and other industries.

Automatic cylinder scraper filter is operate automatically with high filtration accuracy, stable & reliable performance, which is good to replace the traditional manual filter in many industries.

Working Principle

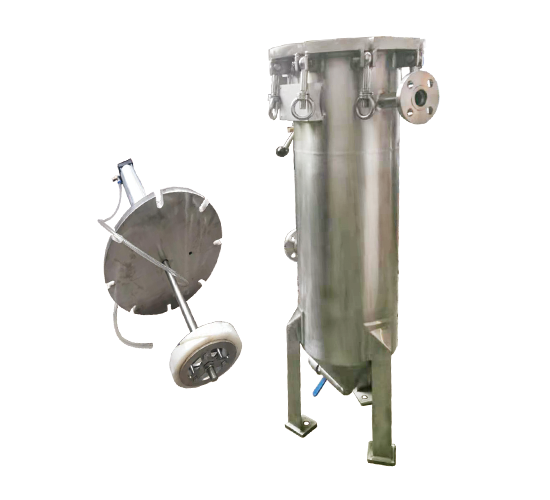

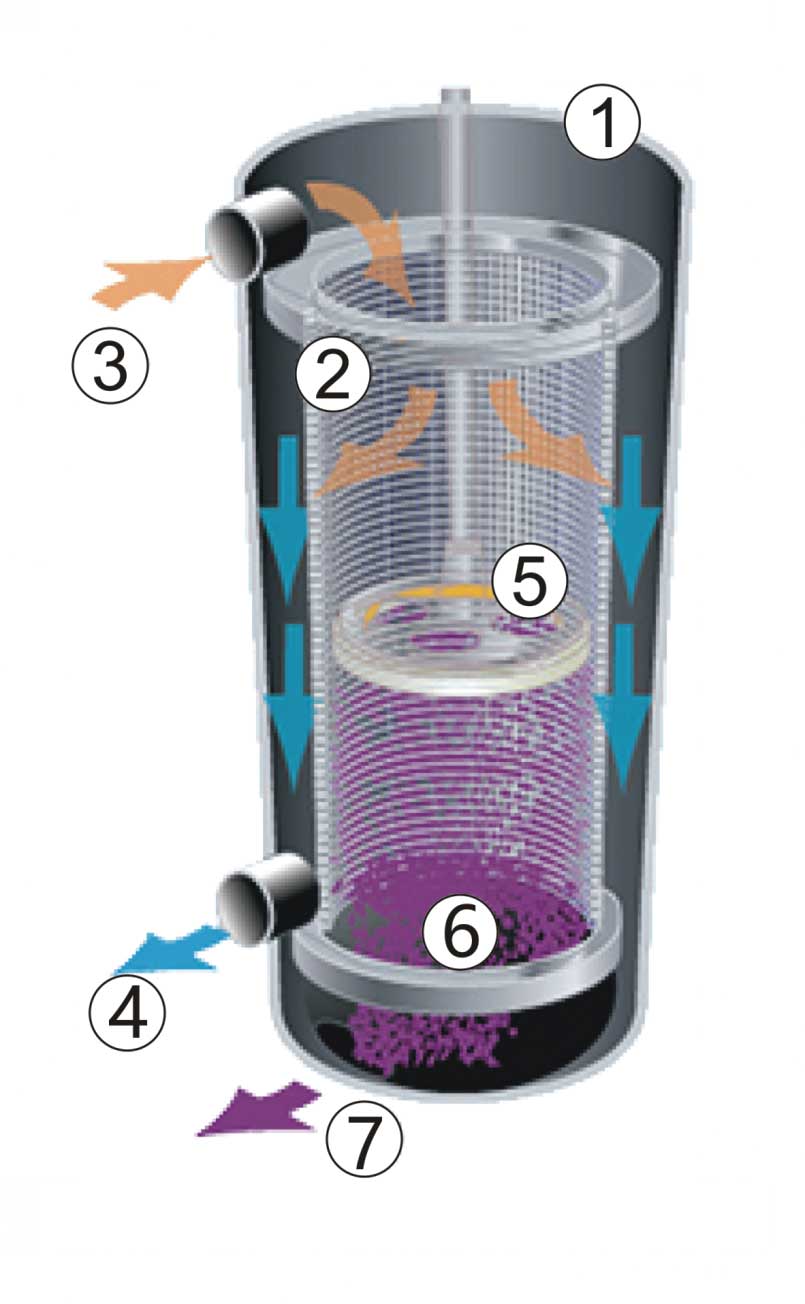

The working principle of the scraper filter is very simple: a filter element (2) is installed in a cylindrical stainless steel housing (1), when the unfiltered liquid enters the housing by the inlet (3), the solid impurities are filtered out and deposited on the inner surface of the filter screen, and then the filtrate flows out from the outlet (4). When the filter element needs to be cleaned (depending on time, pressure difference, or manual selection), a spring-tightened cleaning disc continuously scrapes the inner surface of the filter element back and forth and removes deposited solid impurities. However, when the debris is removed from the gap in the filter element, the cleaning disc sends the dirt into the bottom of the housing (6) and exhausts the filter through the flow path (7).out

Technical Parameters
