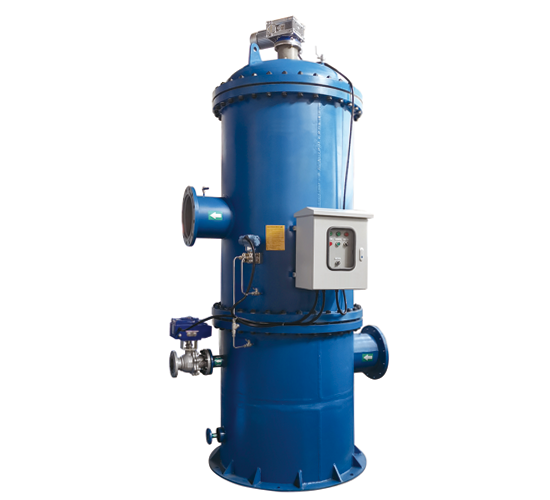

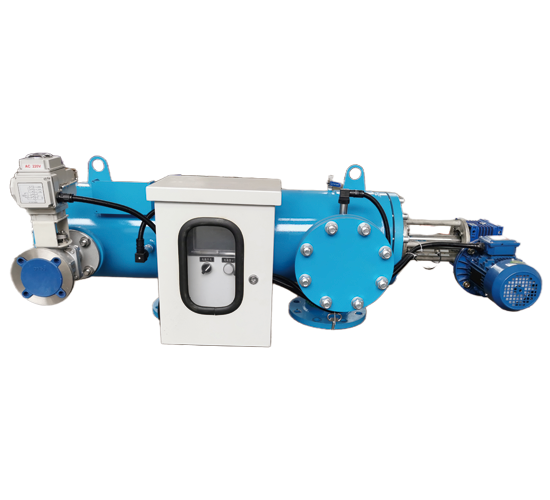

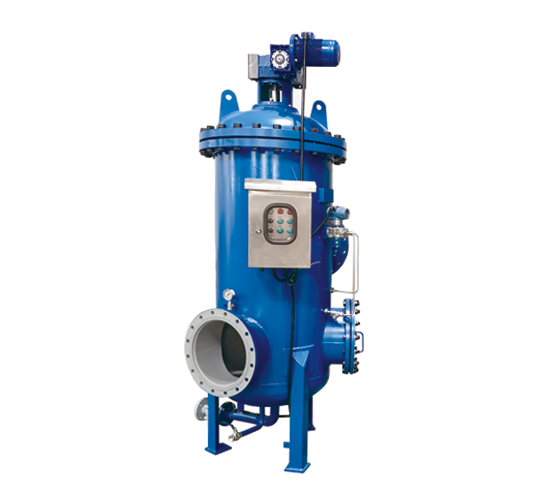

Automatic Sucking Type Self Cleaning Filter

Automatic sucking backwash filter is an industrial automatic filter that provide a variety of comprehensive applications, to ensure the filtered liquid is pure. The filter is available to provide automatic backwash operation and continuous separation of impurities.
Automatic sucking backwash filter requires simple operation and maintenance, it can maintain good operation in harsh operating conditions.
Automatic sucking backwash filter can be equipped with different quantity of filter elements to provide maximum filtration area, which makes the filter has minimum pressure loss during operation.
The pressure design for the filter body is usually base on the standard design of chemical pipeline filter and steel pressure vessels. Other standard can be customized.
Main manufacturing materials for filter body : carbon steel, stainless steel, duplex steel, we also can use material such as rubber titanium, pure nickel, and other special materials.

Automatic Sucking Type Self Cleaning Filter

Product Description

Automatic sucking backwash filter is an industrial automatic filter that provide a variety of comprehensive applications, to ensure the filtered liquid is pure. The filter is available to provide automatic backwash operation and continuous separation of impurities.
Automatic sucking backwash filter requires simple operation and maintenance, it can maintain good operation in harsh operating conditions.
Automatic sucking backwash filter can be equipped with different quantity of filter elements to provide maximum filtration area, which makes the filter has minimum pressure loss during operation.
The pressure design for the filter body is usually base on the standard design of chemical pipeline filter and steel pressure vessels. Other standard can be customized.
Main manufacturing materials for filter body : carbon steel, stainless steel, duplex steel, we also can use material such as rubber titanium, pure nickel, and other special materials.

Working Principle

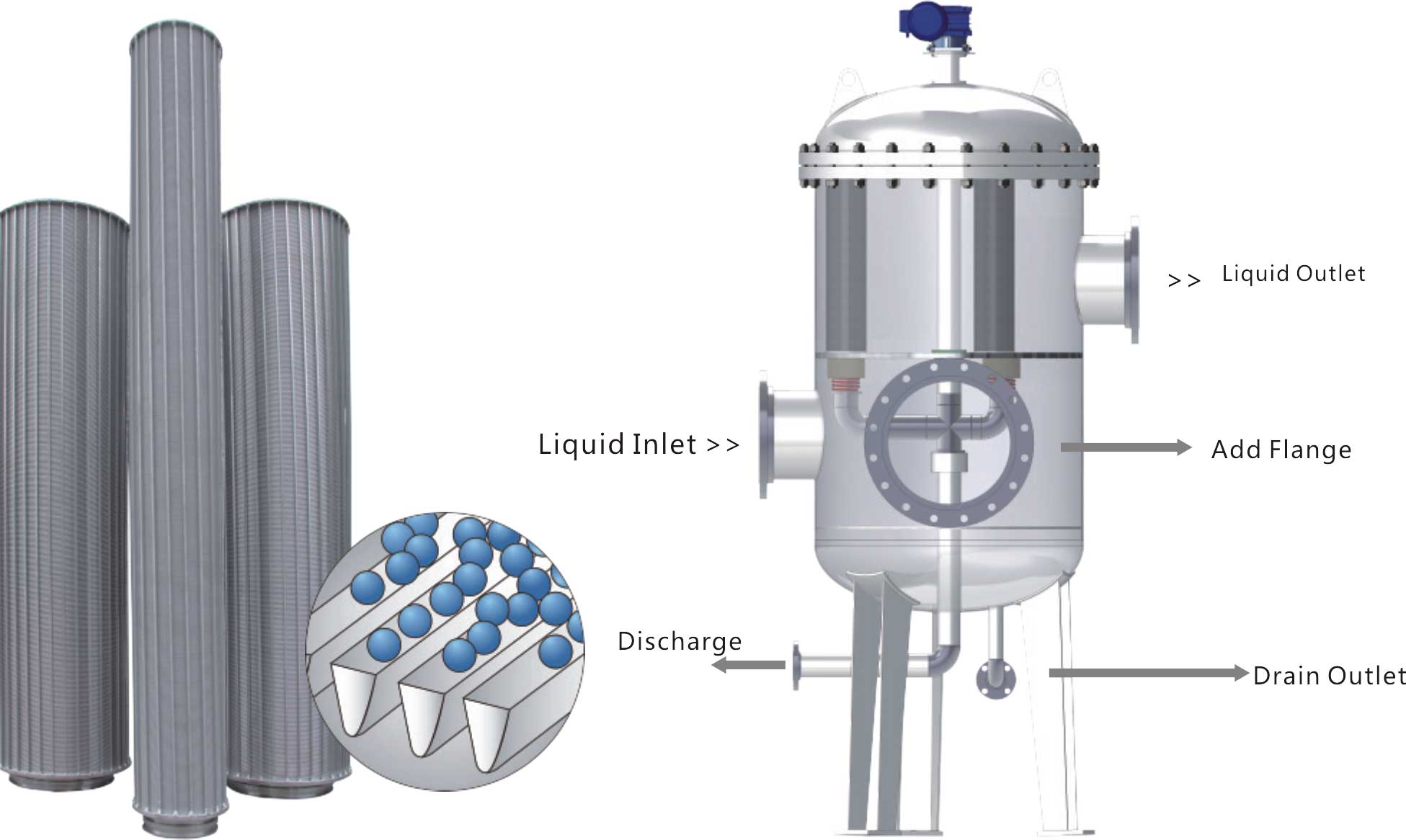

The liquid enters the filter from the bottom, it flows into the inner cavity of the filter element  from the bottom to the top , and flows out from the filter element. The filtered water is discharged from the outlet located on the top of filter, and the solid impurities are stay inside of filter element. When backwashing start, there is no need to stop filtration flow. The motor drives the sucking disc to rotate and meanwhile to open the backwash drain valve. Each filter element is backwashed by the filtered water.
Due to the pressure difference between the water pressure inside of filter and the atmospheric pressure, the reverse flow of the filtrate can remove the impurities trapped on the inner wall of filter. After one round rotation of the sucker, the backwash process is finished, the backwash valve closes and the driving motor stops.

Technical Parameters
