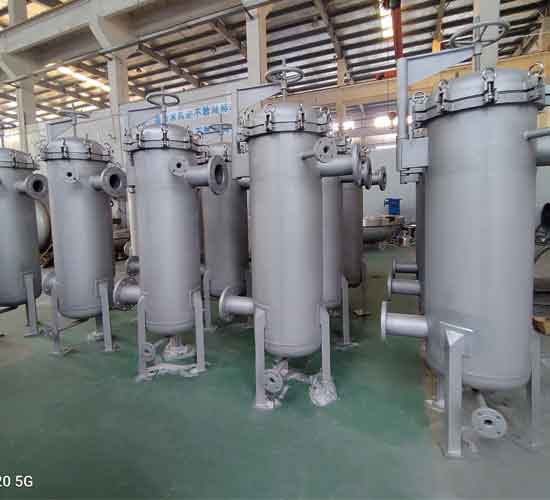

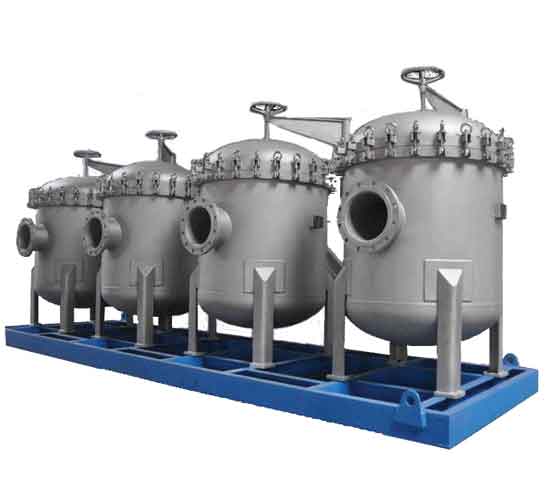

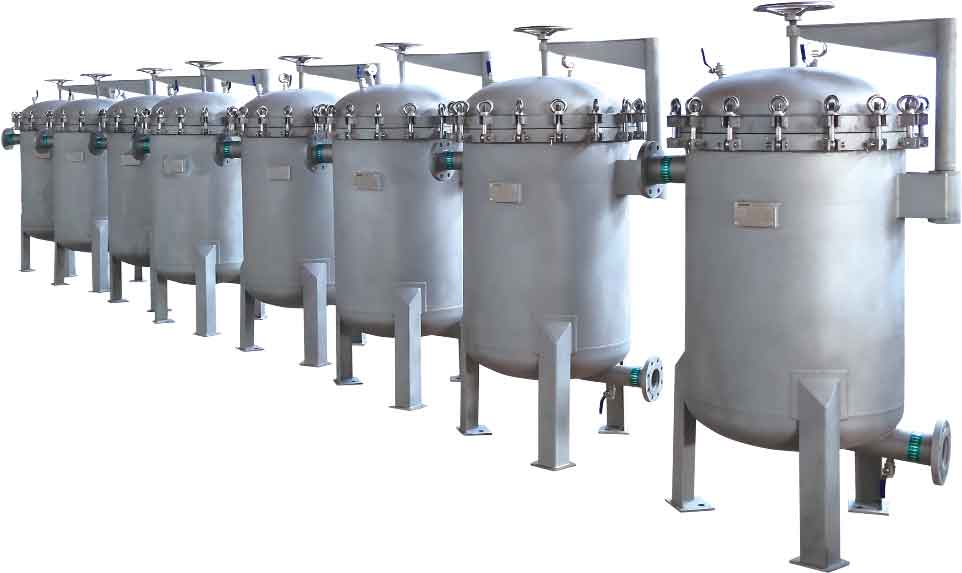

Multi Bag Filter

PrimeFiltra Multi Bag Filter is designed for easy operation and with reasonable structure, which is suitable for high flow complex and variable processes. PrimeFiltra Multi Bag Filter is applicable for the flow volume of 60~5000m³/hr. For the filter with a few bag,can use hand wheel and the standard bearing bearing boom for assistance, and for filter with more than 12 filter bags, cylinder or hydraulic assistance is available for choice.

PrimeFiltra Multi Bag Filter requires one operator for opening and closing, which is easy to operate. The auxiliary devices include pressure relief valve, positioning pin, etc, which effectively ensures the safe operation of the filter.

Multi Bag Filter

Product Features

Independent seamless sealing ring minimizes the accessories, and it is easy for cleaning and fast replacement.

Upward feeding through the elbow is more consistent with the fluid structure.

Manufacturing as per GB and ASME standard

Available manufacturing materials: SS304, SS316, duplex steel, Hastelloy

Qty. of Filter Bag: 1~40

Selecting of the appropriate sealing materials according to the chemical resistance and temperature.

Lifting mode of the top cover: manual type, pneumatic or hydraulic

Customized Manufacturing is available

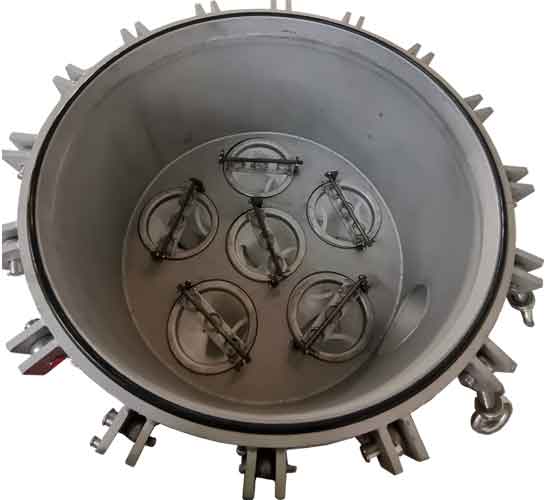

Filter Bag Support: electropolished stainless steel porous type filter basket

Unique 3-point fixing structure ensures good sealing performance

The design of side entry and bottom discharging to ensure the liquid can be fully discharged, and tangent outlet is also available for choice.

Technical Parameters

Shell Material: 2205, 2507, 904L

Titanium, Hastelloy, lined with tetrafluoroides, sprayed with tetrafluoroides

Sealing Material: Butadiene rubber, sodium butadiene rubber (FDA certification)

Qty. of Filter Bag :1-24(Non-standard design is required for larger specifications)

Filter Bag Model:  Single Bag Filter: 1#, 2#, 3#, 4#

                 Multi Bag Filter: 1#, 2#

Maximum Operating Pressure: 1.0Mpa(150PS)(10.34bar)

Design Temperature: Carbon Steel: -6~250℃

                 Stainless Steel: -28~298℃

Non-contact Parts:  Carbon Steel , Stainless Steel

Inlet & Outlet Connection: NPT or Flange

Surface Treatment: Carbon Steel: painting on outer surface

                Stainless Steel: sand blasting (standard), pickling, polishing

Stamp Certification: GB150 “CS” ASME

                 “U” or “UM” Stamp

Filter Bag Sealing: Manual Type, No-Manual compaction(standard)

Opening Mode: Hinge, Hydraulic, or handwheel pinch lifting
