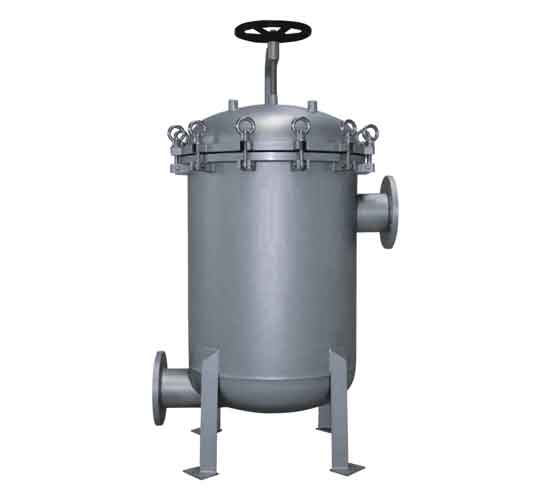

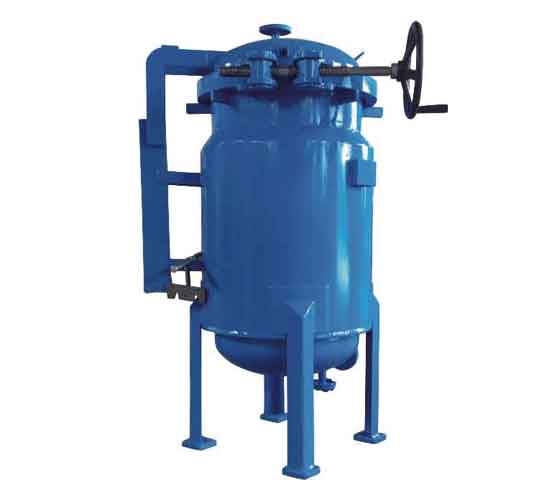

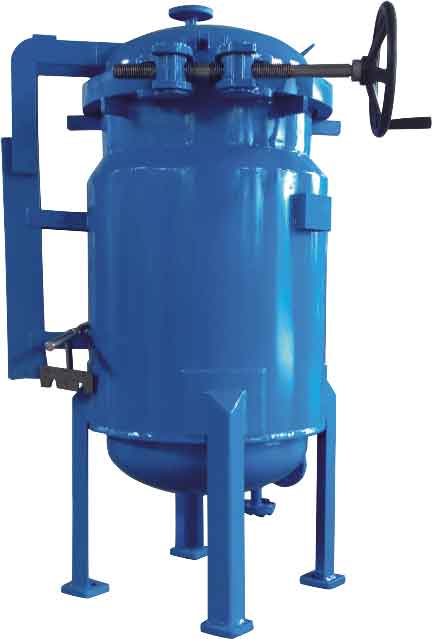

Quick Opening Bag Filter

PrimeFiltra Bag filter is easy to operate and cost effective, it is suitable for high flow applications and frequent replacement of filter bag.

Quick Opening Bag Filter

Product Features

Quick opening structure is simple, easy and secure operating system, it can minimizing shutdown time, which is good for improving production efficiency and reducing operating cost.

The 3-point press ring ensures good sealing between the filter and filter bag, and the attached tool makes the operation more simple and easy.

The spring-assisted weight balancing mechanism makes the top cover light and can be opened or closed easily by hand

High quality O ring for sealing to ensure convenient and reliable operation.

The design of side entry and bottom discharging to ensure the liquid can be fully discharged, and tangent outlet is also available for choice.

Standard quick opening filter is equipped with 2~24 bags (bag no.1 & no.2), maximum quantity of bag can be 40.

Technical Parameters

Shell Material: 2205, 2507, 904L

Titanium, Hastelloy, lined with tetrafluoroides, sprayed with tetrafluoroides

Sealing Material: Butadiene rubber, sodium butadiene rubber (FDA certification)

Qty. of Filter Bag :1-24(Non-standard design is required for larger specifications)

Filter Bag Model:  Single Bag Filter: 1#, 2#, 3#, 4#

                 Multi Bag Filter: 1#, 2#

Maximum Operating Pressure: 1.0Mpa(150PS)(10.34bar)

Design Temperature: Carbon Steel: -6~250℃

                 Stainless Steel: -28~298℃

Non-contact Parts:  Carbon Steel , Stainless Steel

Inlet & Outlet Connection: NPT or Flange

Surface Treatment: Carbon Steel: painting on outer surface

                Stainless Steel: sand blasting (standard), pickling, polishing

Stamp Certification: GB150 “CS” ASME

                 “U” or “UM” Stamp

Filter Bag Sealing: Manual Type, No-Manual compaction(standard)

Opening Mode: quick opening bolt
