Y Type Filter

 Y-type filter has the characteristics of advanced structure, low resistance, convenient discharge and so on.

Y type filter is applicable for water, oil, gas.

Filter for water is 18~30 mesh, filter for gas is 10~100 mesh, and filter for oil  is 100~480 mesh.

Available materials is cast steel, cast steel lined with fluorine or stainless steel.

Y Type Filter

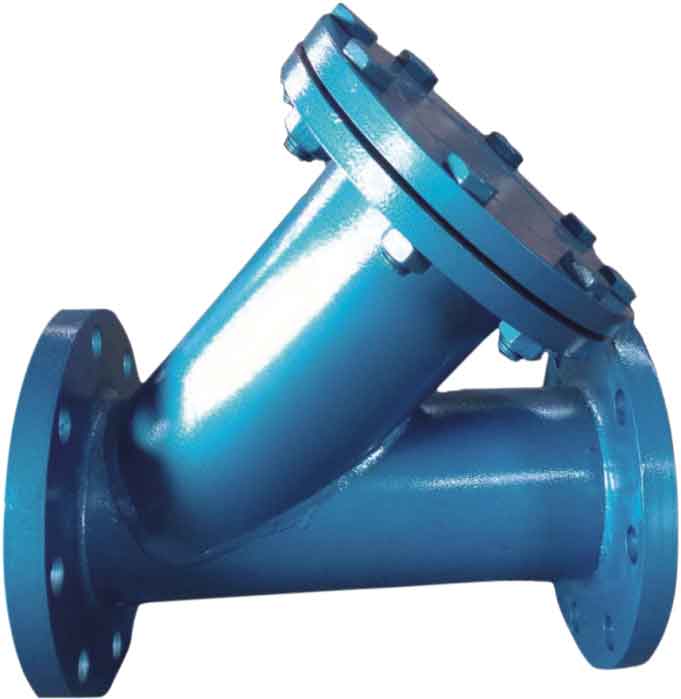

Product Description(Casting Y-Type Filter)

Casting Y-Type Filter is an necessary filtration device in the pipeline system. It is usually installed at the inlet of pressure reducing valve, pressure relief valve, fixed water level valve or others to remove impurities in the medium to protect normal use of valves and equipment.

Working Principle

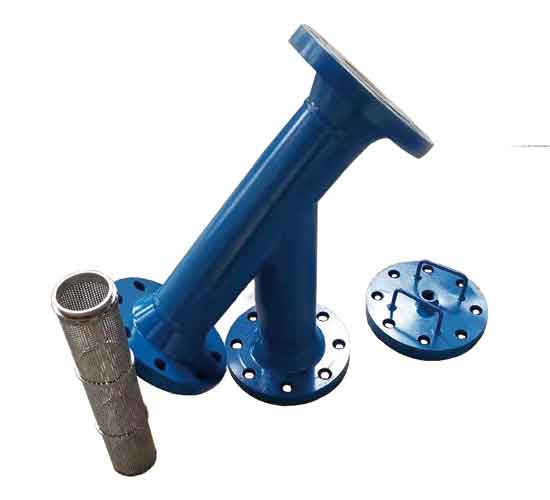

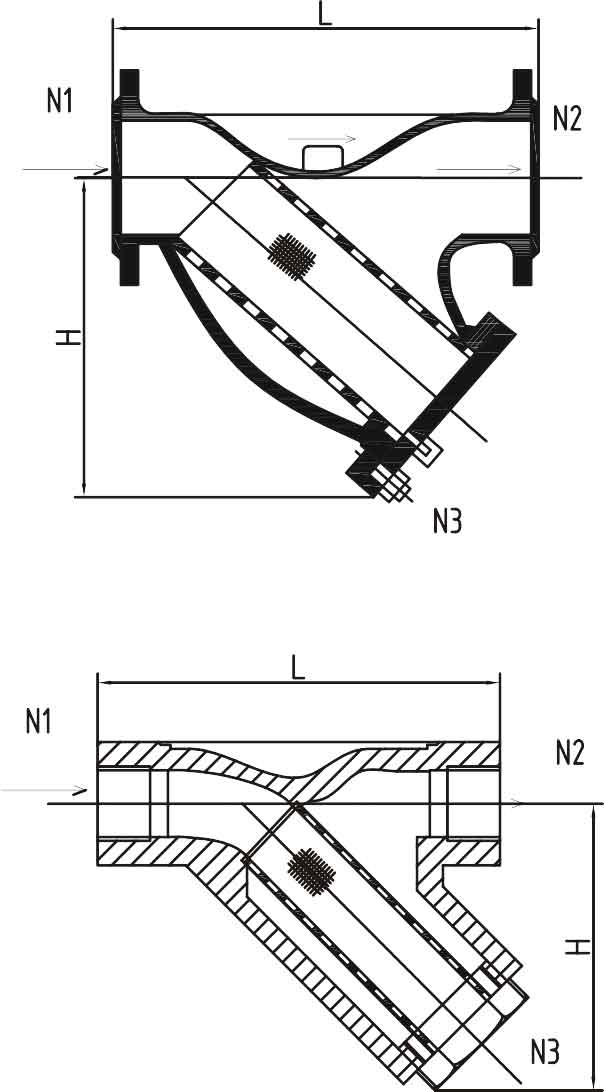

Casting Y-Type Filter is mainly composed of connecting pipe, main pipe, filter basket, flange, flange cover and fasteners. When the liquid enters the filter through the main pipe, the solity impurity particles are blocked in the filter, and the clean fluid flow through the filter and is discharged from the filter outlet.

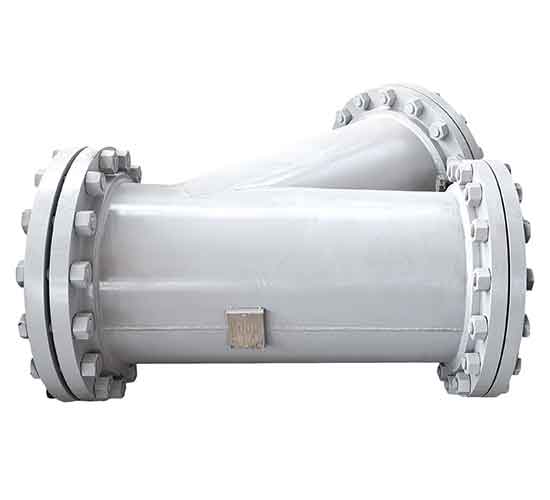

Product Description(Welded Y-Type Filter)

Welded Y-Type Filter is an necessary filtration device in the pipeline system. When the casting Y-type filter is cannot meet requirements, we use welded Y-type filter as replacement.

Working Principle

Welded Y-type Filter is mainly composed of connecting pipe, main pipe, filter basket, flange, flange cover and fasteners. When the liquid enters the filter through the main pipe, the solity impurity particles are blocked in the filter, and the clean fluid flow through the filter and is discharged from the filter outlet.
