Liquid Precision Filter

Available of a variety of filter element, can meet the needs of various working conditions, can be used for filtering particles with size no less than 0.01um

Small size and large filtration area, fast speed, large flow and high efficiency

The filter element is clean and has no pollution

Acid & Alkali resistance, high temperature resistance, high strength

Low Operation & Maintenance cost

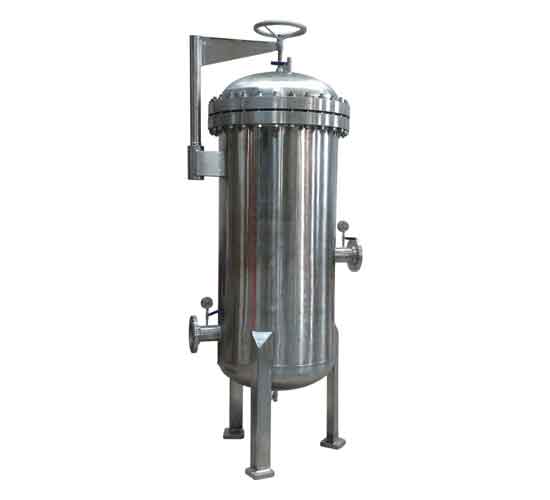

Liquid Precision Filter

Product Description

Liquid precision filter is for solid-liquid separation, which is widely used in chemical, pharmaceutical, beer, mineral water, petroleum, environmental protection, bioengineering, etc.

Liquid precision filter is used for filtering the small size impurities in various liquids.

The filer is manufactured of high quality stainless steel or other special materials, and has excellent performance, corrosion resistance, applicable for multi-purpose filtration.

Technical Parameters

Specification: DN10 ~ DN300

Applicable pressure :≤2.5MPa

Applicable temperature :-30℃-300℃

Shell material :304, 316L

Operating flow :≤400m³/h

Filter material: Glass fiber, 304, 316L

Filtration accuracy :0.01μm-100μm

Connection mode: flange, clamp, thread

Filter element quantity :1-200

1000mm

Filter length :250, 500, 750,

Surface treatment: mechanical polishing,

Electrolytic polishing, sandblasting

Applications

1. Nanofiltration (NF), ultrafiltration (UF), reverse osmosis (RO), electrodialysis (ED1) and other system security filtration and terminal filtration;
2. Pharmaceutical injection, infusion, eye drops, Chinese herbal medicine liquid filtration, biological agent extraction, purification, concentration;
3. High purity water pre-filtration and terminal filtration for electronics, microelectronics and semiconductor industries;
4. Oilfield reinjection water, boiler feed water, chemical reagents, liquid organic products, high purity chemicals, concentrated drugs and other filtration;
5. Drinking pure water, mineral water, fruit juice, tea drinks, health drinks filtration;
6. Liquor, wine, beer, rice wine and other fruit wine filtration, pure draft beer sterilization filtration (instead of pasteurization);
7. Pretreatment filtration or security filtration in the process of production and domestic wastewater treatment and water recycling and reuse;
8. Others such as biological engineering, oil refining, water treatment, research experimental filtration and so on. Printing and dyeing, textile industry water supply and wastewater treatment, research and experimental filtration.
